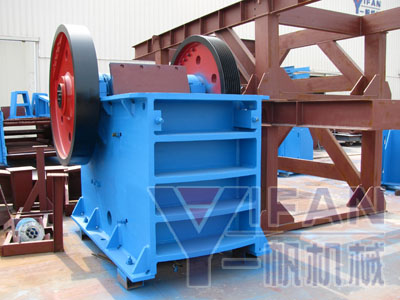

Jaw Crusher

PE/PEX Series Jaw Crusher has the features of high crushing and even product size ratio. It can be used to crush material, whose compression strength is not more than 320Mpa. This jaw crusher is mainly used in various industries, such as mining, smelting, road and railway construction, water conservation and chemical industry etc. PE Series is used in primary crushing, while PEX series is used in secondary crushing and fine crushing.

Working principle of PE/PEX Series Jaw Crusher:

This crusher adopts the electric motor as the power. The eccentric shaft is revolved by an electric motor through v-belts. It causes the swing jaw following the preconcerted path to crush the feeding material. Thus the material will be crushed in the crushing chamber which is composed of the stationary jaw plate, swing jaw plate and the liner plate. The material is discharged from the lower part of machine that is what you want.

Features and Advantages of PE/PEX Series Jaw Crusher:

[1] Simple structure and reliable operation.

[2] Easy maintenance and low operating cost.

[3] The frame of jaw crusher is very firm due to removing welding residual stress.

Main Technical Parameter of PE/PEX Series Jaw Crusher:

Model	Size of Feed Opening(mm)	Max Feed Size (mm)	Discharge Range Opening (mm)	Capacity (m3/h )	Motor Power（kw）	Weight（t）
PE-400×600	400×600	340	40-100	10-40	30	6.1
PE-500×750	500×750	425	50-100	25-60	55	10.5
PE-600×900	600×900	500	65-180	30-85	55- 75	14.8
PE-750×1060	750×1060	630	80-180	72-150	90-110	28
PE-870×1060	870×1060	750	170-270	145-235	90-110	28.45
PE-900×1200	900×1200	780	100-200	100-240	110-132	45.2
PE-1000×1200	1000×1200	850	200-280	190-275	110-132	45.7
PE-1200×1500	1200×1500	1020	150-300	250-500	200	89
PE-1500×1800	1500×1800	1200	220-350	430-1000	355	122
PEX-150×750	150×750	120	10-40	5-16	15	2.53
PEX-250×1000	250×1000	210	25-60	10-30	30-37	6.5
PEX-250×1200	250×1200	210	25-60	13-35	37	7.7
PEX-300×1300	300×1300	250	20-90	13-53	75	11.4

Note:The capacity is total tons per hour passing through crusher  at open circuit when crushing medium and below hardness material and bulk density with 1.6x10³kg/m³.Capacities are relative to physical character and type of feeding,feeding size and composition and so on.
