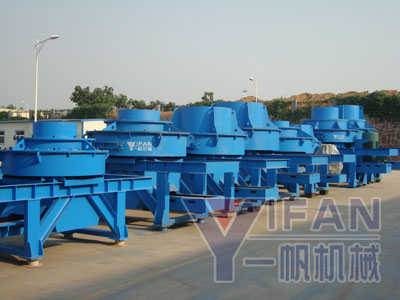

Sand Maker
VI Series Vertical Shaft Impact Crushers have another name called Sand Maker, which is high-performance equipment for sand making and shaping, is researched and produced by our corporation through absorbing the advanced technology from Germany, and has achieved world advanced standards. This equipment has two types: rock-on-rock and rock-on-iron. Sand yield of “rock-on-iron” type is higher by 10-20% than that of “rock-on-rock” type. Sand maker is widely used in fine crushing and rough grinding of metal, mineral, building aggregate, concrete, anti-fire material, glass raw material, manufactured sand and all kinds of metallurgical residue. It is also can utilized in shaping of high rank road surface.
Working principle of Sand Maker:
Material falls down to impellor cavity. Under great centrifugal force, it hits material that coming downwards. After hitting each other, they force a vortex between impellor and shell, and hit each other several times, finally smaller stone comes out, and goes to vibrating screen. Satisfactory material is transported by conveyor belt. However overlarge material will go back to sand maker to be recrushed. Output sizes can be made according to customer’s requirement.
Features and Advantages of Sand Maker:
[1] High crushing efficiency and function of fine crushing and rough grinding;
[2] Simple structure, easy installation and maintenance and low operating cost;
[3] Excellent product of cubic shape, and small fraction of elongated flaky particle shape, which is suitable for aggregate shaping and manufactured sand.
Aapplication of Sand Maker:
[1] Sand maker is widely used in manufactured sand producing of river gravel, mineral and stone ships ect.
[2] It is used for producing building aggregate, concrete, aggregate for road surface and roadbed, asphalt concrete and cement concrete.
[3] It is also used for sand making and shaping in the field of engineering such as water conservancy, hydroelectric power, high-class highway, railway, bridage and municipal works.
[4] It is used in fine crushing of ming industry such as building materials, metallurgy, chemical engineer, ming, anti-fire material,cement ect.
[5] Sand maker is used for producing glass raw material and quartz sand ect.
Technical Parameter of Sand Maker:
| Model | Max Feed Size(mm) | Speed of Rotor(r/min) | Capacity(t/h) | Motor Power(Kw) | Overall Dimensions(L×W×H)(mm) | Weight(Kg) |
| VI-3000 | 45 (70 ) | 1760-2210 | 30-60 | 55-90 | 3080×1757×2126 | ≤5555 |
| VI-4000 | 55 (70 ) | 1550-1940 | 50-90 | 110-150 | 4100×1930×2166 | ≤7020 |
| VI-5000 | 65 (80 ) | 1330-1670 | 80-150 | 150-220 | 4300×2215×2427 | ≤11650 |
| VI-6000 | 70 (80 ) | 1190-1490 | 120-250 | 220-320 | 5300×2728×2773 | ≤15100 |
| VI-7000 | 70 (80) | 1050-1310 | 180-350 | 264-400 | 5300×2728×2863 | ≤17090 |
| VI-8000|| | 80(120) | 940-1170 | 320-600 | 440-630 | 6000x3022x3425 | ≤24610 |
1.The capacity is total tons per hour passing through crusher at open circuit when crushing medium and below hardness material and bulk density with 1.6x10³kg/m³.Capacities are relative to physical character and type of feeding,feeding size and composition and so on.
2.The number in the brackets is applicable to low abrasive material.
3.Hydraulic decap and automatic lubricating device are optional configuration.
