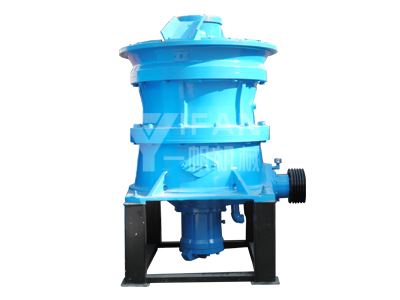

CCS Hydraulic Cone Crusher

Cone Crusher

Optimized cavity type, higher capacity and better quality.


Having summarized all the advantage of each crushing cavity and experienced theoretical analysis and practical examination, CCS series hydraulic cone crusher designed by Yifan engineers owns variety of cavities for your choice. Through selecting suitable cavities and eccentricity, we can do our utmost to meet our customer’s different requirements and realize high capacity. Laminated crushing function can be fully realized with full realized with full load, which contributes to good shape of final product with more cubic particles.


Main Technical Parameter of CCS Series Hydraulic Cone Crusher:

CCS Series Secondary Cone Crusher:
Model CCS831T CCS837T CCS848T CCS855T
Moter power(kw) 90 160 250 315
Stroke(mm) 16-25 18-36 18-40 18-40
Max lift during maintenance(kg) 1850 4750 8500 14200
Total weight(kg) 7500 12000 22500 36300
CCS Series Tertiary Cone Crusher:
Model CCS831 CCS837 CCS848 CCS855 CCS865 CCS887
Moter power(kw) 90 160 250 315 520 600
Stroke(mm) 16-25 18-40 25-40 25-45 30-50 30-50
Max lift during maintenance(kg) 1650 2850 5150 8600 15600 23000
Total weight(kg) 5700 9500 17500 28000 53000 75000
The Capacity of CCS Series Cone Crusher:
Model Type of Cavity Max Feeding Size(mm) Closed side(mm),Capacity(t/h)
22 25 29 32 35 38 41 44 48 51 54 60 64 70
CCS831T
EC 240 85 88-125 95-135 102-165 110-135 125
C 200 70-85 75-110 85-120 95
CCS837T
EC 360   125 135-175 148-230 155-290 165-310 175-326 180-330 195-300 200-255 210
C 300 105 115-145 125-195 130-250 140-270 150-285 160-295 165-260 180
CCS848T
EC 450         252-310 265-358 185-450 300-532 323-586 338-516 355
C 400     215-265 225-306 243-320 259-425 272-495 285-456 298-410 310-385
CCS855T
C 500           290-380 325-410 350-555 655-685 383-753 396-795 432-860 450-785 495-620

Model Type of Cavity Max Feeding Size(mm) Closed side(mm),Capacity
4 6 8 10 13 16 19 22 25 32 38 44 51 57 64 70
CCS831
EC 135       45-65 52-75 58-90 65-100 70-110 75-116 78-120
C 90       40-55 43-78 48-88 52-96 55-103 58-108 65-115
M 50   32-50 36-58 38-65 42-68 50
F 38 25 27-45 29-50 32-55 35-48 40
CCS837
EC 200         65-117 72-140 75-152 80-162 85-180 95-206 110-215
C 145         58-128 66-132 68-136 72-153 80-168 88-182 92-162
M 115     63 53-85 55-113 62-136 66-148 70-168 75-173 85-160
F 70       66-102 72-115 76-128 81-142 85-126 95
CCS848
EC 215           116-210 125-285 136-303 148-325 172-350 182-396 195-368
C 175         105-186 112-206 120-296 132-325 143-331 165-359 174-343 186-311
M 110         124-195 138-264 146-293 155-310 164-330 175-295 195-255
F 70       95-165 108-187 121-203 132-224 141-238 150-252 162-223
CCS855
EC 275           168-263 186-315 205-396 223-452 248-527 272-589 290-638 310-489
C 215           162-285 175-323 195-428 212-486 235-554 253-620 278-530 298-365
MC 175           152-275 166-361 108-415 198-463 215-520 235-486 265-350
M 135           185-302 198-396 214-453 232-495 265-472 290-395
F 85         175-258 195-309 213-366 235-384 256-416 285-423 325
CCS865
EC 300               430-541 458-781 522-891 577-981 632-1078 696-1188 751-1282 815-1391 870-1225
C 240             392-552 418-672 445-833 507-950 561-1050 614-1149 676-1266 730-1366 791-1317 845-1200
MC 195             367-415 392-641 417-789 475-900 525-995 575-1089 634-1199 683-1295 742-1265 792-1137
M 155             386-529 413-682 439-786 501-896 553-991 606-1085 668-1195 720-1280 782-1173 835-1032
F 90         350 372-586 400-655 427-699 454-744 516-848 571-797 626-721
CCS887
EC 370                 463-697 528-1020 584-1199 639-1314 704-1447 759-1561 824-1695 880-1809
C 330                 521-733 594-1047 657-1158 720-1268 792-1397 855-1507 928-1635 991-1371
MC 260               522 556-790 634-1012 701-1198 767-1311 845-1445 912-1558 989-1353 1080
M 195               550 566-939 646-1070 713-1183 782-1296 861-1427 928-1464 998-1254
F 100         387-477 418-663 499-712 479-760 510-809 581-863 642-822
Note:The capacity is total tons per hour passing through crusher at open circuit when crushing medium and below hardness material and bulk density with 1.6x103kg/m3. Capacities are relative to physical character and type of feeding, feeding size and composition and so on.
