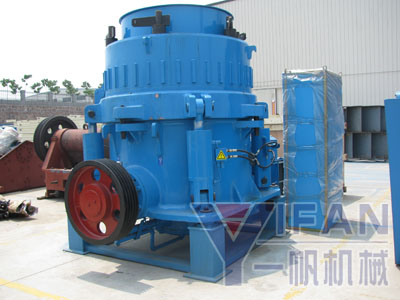

CCH Hydraulic Cone Crusher

Cone Crusher

CCH series hydraulic cone crusher adopting world advanced technology is designed and made through to be the crusher of world advanced level. it is widely used in metallurgical, architectural, water and electricity, traffic, chemical, architectural material industries. It is suitable for crushing varies of mid hard and above mid hard ores and rocks.


Working principle of CCH Series Hydraulic Cone Crusher:

The machine is composed of main frame, countershaft, eccentric shaft, socket bearing, crushing head, adjust device, bowl and so on. When the crusher works, the electric motor revolves eccentric shaft by horizontal shaft and a couple of bear gear. The axle centre line do the rotary oscillation, this make the surface of mantle sometimes close the surface of concave ,but sometimes leave, thereupon the mineral is ceaselessly squeezed and circles to crush in the crushing chamber.


Features and Advantages of CCH Series Hydraulic Cone Crusher:

[1] Reasonable structure advanced crushing principle and technical specification, reliable work and low cost.

[2] Strong crushing ability; High efficient productivity; High capacity.

[3] Reliable Hydraulic system providing safe and effective overload protection.

[4] types of crushing chamber are for wide range of product size requirement.

[5] High automation adopting hydraulic adjustment and hydraulic clean cavity setting.


Main Technical Parameter of CCH Series Hydraulic Cone Crusher:

Model Type of Cavity Max Feeding Size(mm) Discharge Range(mm) Motor Power(kw) Capacity(t/h)--open circuit, closed discharge(mm)
9 13 16 19 22 26 32 38 51 63 76 89
 CCH639 C 160 22-33 75-90         120 130 150
M 130 13-26   65 85 100 120 130
F 50 9-19 40 60 80 90
CCH651 EC 260 26-51 185-200           250 290 340 395
C 220 19-51       182 209 236 279 334 365
M 150 16-38     125 140 165 220 275 330
F 80 9-22 70 90 115 130 150
CCH667 EC 315 38-24 250-280               555 649 766
C 230 26-64           366 430 468 629 657
M 205 22-52         266 299 348 393 451
F 180 16-38     188 212 234 267 305 337
CCH684 EC 450 38-89 400               890 1179 1380 1475 1566
C 350 32-76             800 850 1100 1288 1398
M 320 26-63           612  735 815 990 1137
F 268 19-52     376 412 500 620 725 867

Technical Data of the Short head hydraulic cone crusher :

Model Type of Cavity Max Feeding Size(mm) Discharge Range(mm) Motor Power(kw) Capacity(t/h)--open circuit, closed discharge(mm)
3 5 6 9 13 16 19 22 26 32 38
 CCH639D C 70 6-19 75-90     59 68 96 110 130
M 51 5-16   45 59 68 96 110
F 35 3-13 30 45 50 65 90
CCH651D C 89 9-22 185-200       100 120 175 210
M 70 6-16     105 130 160
F 54 5-16   80 90 110 135 160
CCH667D EC 133 13-26 250-280         280 310 340 370 390
C 133 10-26       210 280 31 340 370 390
M 89 6-19     130 168 215 260 290
F 70 6-13     130 168 215
CCH684D EC 203 16-26 400           510 600 630 680
C 178 13-26         455 488 552 600 620
M 133 10-19       355 420 460 530
F 105 6-16   220 310 375 428
Note:

1.The capacity is total tons per hour passing through crusher at open circuit when crushing medium and below hardness material and bulk density with 1.6x10³kg/m³. Capacities are relative to physical character and type of feeding, feeding size and composition and so on.

2.CCH651(D)and CCH684(D)standard configuration includes discharging opening of hydraulic locking and hydraulic motor adjustment, and you can choose CCH639(D),CCH651(D)as matching products.
