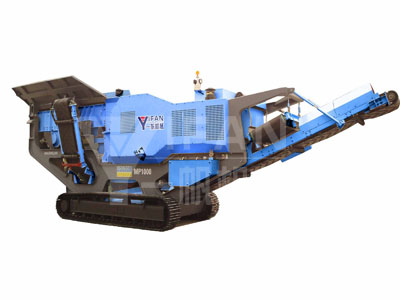

Tracked Crusher
Tracked crusher is a kind of efficient crushing equipment, which adopts self-drive mode, possesses advanced technology and complete function. Under any terrain condition, this equipment can get to anywhere of work place, in this way, it can decrease the operation to the material, in addition, it is also convenient to comprehensively assist the coordination of mechanical equipment. By the control of wireless remote, it is easy to place the crusher to trail car and transport to the operating site. Because it does not have to spend on assembly time, therefore the equipment can throw into work immediately when it arrives at operating site. Jaw plant is of uniform finished material size, high production rate and crushing ratio, in addition, its optimal design can satisfy the most needful technical characteristics for crusher.
Features of Tracked Crusher:
[1] Light weight, Small volume, especially suitable for narrow worksite;
[2] Convenient transport; track drive has no harm to the road surface; equipped with multifunction attachments; used widely;
[3] Gather material receiving, crushing, transport and other processing equipment as a whole. It will possess the first-class crushing performance for rock crushing, aggregate production, strip-mining by the optimization of process flow. The union of different machine types can form a powerful assembly line of crushing work, and finish required processing work;
[4] The whole machine adopts the all-wheel-drive. It can achieve pivot steering, standard configuration and perfect security protection function;
[5] Fuel conservation, the saving rate of fuel oil reaches up to 25%. The screening mode of Crawler-type feeding not only fits the environmental protection, but also saves the cost;
[6] The optimal design: attach the power unit with machine;
[7] It can carry out climbing work and meet the crushing need such as mine, hydropower, coal mine etc.;
[8] It is a kind of typical multifunction construction machinery product,which integrates with mechanism, electricity, and hydraulics. Its structure is firm; the dimension of whole machine has different types.
Application of Tracked Crusher:
[1] Mobile crushing and screening plant has the characteristic of multifunction operating;
[2] It is used widely to the primary crushing of hard material in the excavate site, such as mine, coal mine, cement industry etc.;
[3] It is also used to operate in the recycling of construction waste, earth and stone works, urban infrastructure, road and construction site etc.;
[4] Handle the topsoil and other various materials; separate viscous coagulating aggregate; screening after crushing;
Pro-environment Conception of Tracked Crusher:
The noise silencer of mobile crushing and screening plant is the best noise absorption system. This equipment is compact and flexible. It can satisfy the construction waste crushing work in the urban area.
Main Technical Parameter of PT-J Tracked Crusher:
| PT-J Series Mobile Jaw Crushing Plants | PT-J6 | PT-J7 | PT-J8 | PT-J10 |
| Feed opening (mm × mm) | 600 × 1020 | 760 × 1020 | 850 × 1100 | 1070 × 1400 |
| Max feed size (mm) | 500 | 630 | 720 | 950 |
| Discharge setting (mm) | 60-175 | 70-200 | 90-215 | 125-250 |
| Crushing capacity (t/h) | 85-280 | 120-490 | 160-510 | 360-800 |
| Driving unit | ||||
| Engine | Cummins Tier3 | CAT C9 | CAT C12 | CAT C15 |
| Power (kw) | 164 | 242 | 317 | 390 |
| Feed hopper | ||||
| Hopper volume (m³) | 6 | 7 | 8 | 10 |
| Grizzly feeder with pre-screening | ||||
| Model | GSF3712 | GSF4316 | GSF4316 | GSF5920 |
| Drive | Hydraulic | Hydraulic | Hydraulic | Hydraulic |
| Main conveyor belt | ||||
| Belt width (mm) | 1000 | 1000 | 1200 | 1400 |
| The unearthed belt conveyor | ||||
| Belt width (mm) | 650 | 650 | 650 | 650 |
| Crawler unit | ||||
| Drive | Hydraulic | Hydraulic | Hydraulic | Hydraulic |
| Permannet magnetic separator | ||||
| Magnetic separator | option | option | option | option |
| Dimensions and weight | ||||
| Working dimensions | ||||
| L x W x H (mm) | 12600x4060x4160 | 14800x4100x4400 | 16000x4200x4400 | 16500x4300x6000 |
| Transport dimensions | ||||
| L x W x H (mm) | 12600x2760x3460 | 14600x2850x3900 | 16000x3200x3800 | 16000x3500x3900 |
| Weight (t) Approximately | 39 | 48 | 65 | 115 |
