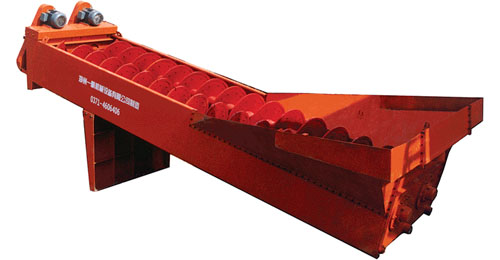

XL Series Sand Washer
XL Series Sand Washer can wash and separate the soil and sundries in the sand. Its novel structure, adjustable overflow dam baffle and reliable arrangement can ensure the washing result. It is suitable for highway, hydroelectric projectand construction.
Features and Advantages of XL Series Sprial Sand Washer:
[1]This spiral sand washer is rational construction, convenient to repair, large handling capacity, lower power consumption, and High washing performance.
[2] Its novel structure, whole sealing oil bath type arrangement, adjustable overflow dam baffle can ensure such features, eg: high efficiency, durable, clean dewatering, fine-grained keep stable.
Main Technical Parameter of XL Series Sprial Sand Washer:
| Model | XL508 | XL610 | XL762 | XL915 | 2XL915 | XL1115 | 2XL1115 |
| Screw Diameter(mm) | 508 | 610 | 762 | 915 | 915 | 1115 | 1115 |
| Length of Tub (mm) | 6705 | 7225 | 7620 | 7585 | 7585 | 9782 | 9782 |
| Max Feed Size (mm) | ≤10 | ≤10 | ≤10 | ≤10 | ≤10 | ≤10 | ≤10 |
| Capacity (t/h) | 20 | 40-50 | 50-75 | 100 | 200 | 175 | 350 |
| Speed Of Screw (r/min) | 38 | 32 | 26 | 21 | 21 | 17 | 17 |
| Motor Power (kw) | 5.5 | 7.5 | 11 | 11 | 2×11 | 15 | 2×15 |
| Water Consumption (t/h) | 6-60 | 6-63 | 9-63 | 10-80 | 20-160 | 20-150 | 40-300 |
|
Overall Dimensions (L×W×H)(mm) |
6500×2020 ×2946 |
7350×2510 ×3303 |
8545×2650 ×3862 |
8900×2861 ×3821 |
8900×3765 ×3821 |
11270×3645 ×4340 |
11270×4365 ×4415 |
| Weight (t) | 2.52 | 3.09 | 5.23 | 6.27 | 11.11 | 10.18 | 17.94 |
