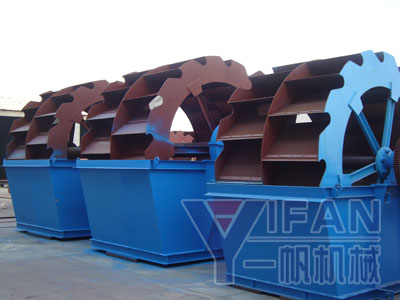

XS Series Sand Washer
XS Series Sand Washer is a bucketed sand washer, mainly used to washing and dewatering building material. It can wash and separate the soil and sundries in the sand. Its novel structure, adjustable overflow dam baffle and reliable arrangement can ensure the washing result. It is a high efficiency machine that cooperate with Sand Making Machine.
Working principle of XS Series Sand Washer:
The electric motor runs slowly with the impellor after decelerated by the belt, decelerator and gears wheel. The sand and stone flow into washing launder from feeding launder, rolls with the impellor, and grinds each other. The impurity covering the sand is washing away. At the same time, add more water, the strong water flow will take away waste and some low-weight wastes from washing launder. Through the above process, the washing function is finished. The clean sand and stone is lift up by vane. When it goes up slowly, the water begins to drop through the mesh and fall back in the washing launder. On one hand, water is removed from the sand and stone; on the other hand, the water can be fully used. Finally, the sand and stone goes to the out launder from the rotary impellor to finish the washing task.
Range of application of XS Series Sand Washer:
It is always used in construction site, sandstone plant, hydropower station, concrete dam site, building site and etc. It has such features that high washing performance, rational construction, large handling capacity, lower power consumption, less loss of sand during the sand washing. Especially the transmission part separate with water, sand, so its failure rate is much lower than the sprial sand washer, so it is the best option for upgrading.
Features and Advantages of XS Series Sand Washer:
[1] Reasonable structure, convenient maintenance.
[2] High processing capacity and low power consumption.
[3] Low of wearing parts consumption, low cost.
Main Technical Parameter of XS Series Sand Washer:
| Model |
Diameters of The
Wheel Buckert(mm) |
Speed of Rotor(r/min) | Feed Opening Size(mm) | Capacity(t/h) | Motor Power(kw) |
Overall Dimensions
(L×W×H)(mm)
|
Weight(kg) | ||
| XS2600 | 2600 | 2.5 | ≤10 | 20-50 | 5.5 | 3515×2070×2672 | 2500 | ||
| XS2600 (II) | 2600 | 2.5 | ≤10 | 30-70 | 5.5 | 3515×2270×2672 | 2900 | ||
| XS2800 | 2800 | 1.2 | ≤10 | 50-100 | 7.5 | 3900×3300×2990 | 3980 | ||
| XS3200 | 3200 | 1 | ≤10 | 80-120 | 11 | 3965×4440×3410 | 7270 | ||
| XS3600 | 3600 | 1 | ≤10 | 120-180 | 15 | 4355×4505×3810 | 9430 | ||
