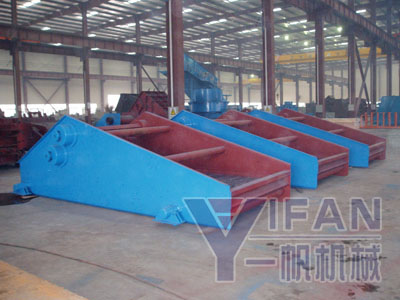

ZK Series Straight-line Vibrating Screen

Vibrating Screen

Screen take eccentric block as exciting force, so materials on sieve were throw up, and at the same time do forward movement straightly. Materials ingress the screen evenly, produce several specification materials through multi-screen, and discharge from respective opening. It has such advantage as low consumption, high output, simple structure, easy maintenance, full-closed structure, no dust emission, automatic discharging and so on. It is more suitable for working trend.


Working principle of ZK Series Straight-line Vibrating Screen :

Linear vibrating screen adopt dual motor drive, when the motors do synchronous, reverse rotation, the exciting force generated by eccentric block cancel each other out on the parallel direction of motor axis, and stacked together with the direction that perpendicular to the motor axis,so its trajectory is a straight line. There is a dip on the two motor's relative screen surface, materials was tossed by leaps and bounds forward for linear motion under the resultant action of exciting force and material self-gravity, so as to achieve the purpose of screening and grading. It is used in production line and realize automate operations. It has such advantages as lower consumption, high efficiency, simple structure, easy maintenance, full-closed structure, and no dust emission and so on. The Maximum screen mesh is 325, it can be screen seven different kinds of materials.


Range of application of ZK Series Straight-line Vibrating Screen:

It is used for selecting and classifying the powder and granular materials. and widely used in plastics, abrasives, chemicals, medicine, building materials, food, carbon, fertilizer and other industries.


Features and Advantages of ZK Series Straight-line Vibrating Screen:

[1] High vibrating force with unique eccentric structure. Adopt advanced construction, making the vibrating force powerful;

[2] The beam and case of the screen are connected with high strength bolts without welding;

[3]Simple structure, easy to repair;

[4]Adopt tire coupling and soft connection makes operation smooth;

[5]High efficiency, easy maintenance, sturdy and durable.

[6]According to years of practice, it proves that this series of machine has lots of advantages, such as large handling capacity, reasonable technical parameter, high structural strength and stiffness; serialization, generalization, and high degree of standardization, running steadily and reliably, small noise, easy maintance and so on.


Main Technical Parameter of YK Series Inclined Vibrating Screen :

Model Screen Surface Max Feeding Size(mm) Capacity(t/h) Motor Power(Kw) Weight(Kg)
Deck Size(m2) Mesh(mm) Structural
ZK1022 2.25 0.25-50   <250 4.5-90 3×2 2215
ZK1230 3.6 0.25-50   <250 7.2-115 4×2 2662
ZK1237 4.5 0.25-50   <250 9.0-180 5.5×2 3118
ZK1437 5.25 0.25-50   ≤250 12.0-250 5.5×2 3388
ZK1445 6.3 0.25-50   ≤250 12.6-252 7.5×2 3806
ZK1637 6 0.25-50   <250 12.0-240 5.5×2 3552
ZK1645 7.2 0.25-50   ≤250 16.2-324 7.5×2 4235
ZK1837 6.75 0.25-50   <250 14.4-270 7.5×2 3776
ZK1845 8.1 0.25-50   ≤250 16.2-324 11×2 4842
ZK1852 9.45 0.25-50   <250 18.9-378 11×2 5900
ZK2045 9 0.25-50   <250 16.2-324 11×2 5969
ZK2052 10.5 0.25-50   <250 21.0-420 11×2 6472
ZK2060 12 0.25-50   <250 90-270 15×2 8074
ZK2445 10.8 0.25-50   <250 21.6-432 15×2 7439
ZK2452 12.6 0.25-50   <250 25.2-504 15×2 8216
ZK2460 14.4 0.25-50   <250 28.8-576 15×2 8522
ZK3045 13.5 0.25-50   <250 27.0-540 15×2 9859
ZK3052 15.75 0.25-50   <250 31.4-628 22×2 9958
ZK3060 18 0.25-50   <250 36-720 22×2 9366
ZK3645 16.2 0.25-50   <250 37.8-756 22×2 12289
ZK3652 18.9 0.25-50   <250 43.2-846 22×2 13409
ZK3660 21.6 0.25-50   <250 43.2-846 22×2 14390
ZK3675 27 0.25-50 Punched Polyurethane Stripped and Seanmed <250 54.0-1080 30×2 17100
2ZK1022 2.25 0.25-50   <250 4.5-90 4×2 3018
2ZK1230 3.6 0.25-50   <250 7.2-144 5.5×2 3740
2ZK1237 4.5 0.25-50   <250 9.0-180 7.5×2 4460
2ZK1437 5.25 0.25-50   <250 12.0-250 7.5×2 5042
2ZK1445 6.3 0.25-50   <250 12.6-252 15×2 6883
2ZK1637 6 0.25-50   <250 12.0-240 15×2 6919
2ZK1645 7.32 0.25-50   <250 14.4-280 15×2 8654
2ZK1837 6.75 0.25-50   <250 14.4-270 15×2 7951
2ZK1845 8.1 0.25-50   <250 16.2-324 15×2 8116
2ZK1852 9.45 0.25-50   <250 18.9-378 15×2 9061
2ZK2045 9 0.25-50   <250 16.2-324 15×2 9133
2ZK2052 10.5 0.25-50   <250 21.0-420 22×2 10128
2ZK2060 12 0.25-50   <250 24.0-480 22×2 10875
2ZK2445 10.8 0.25-50   <250 21.6-432 22×2 11008
2ZK2452 12.6 0.25-50   <250 25.2-504 22×2 12757
2ZK2460 14.4 0.25-50   <250 28.8-576 22×2 13560
2ZK3045 13.5 0.25-50   <250 27.0-540 30×2 15472
2ZK3052 15.75 0.25-50   <250 31.4-628 37×2 16942
2ZK3060 18 0.25-50   <250 36-720 30×2 18253
2ZK3645 16.2 0.25-50   <250 37.8-756 45×2 17900
2ZK3652 18.9 0.25-50   <250 43.2-846 45×2 24040
2ZK3660 21.6 0.25-50   <250 43.2-846 45×2 25400
Note：The processing capacity listed in the table is based on dry classification of limestone, which bulk density is 1.6t/m³.The listed capacity is only for reference.The actual data need to be fixed by tech department according to worksite situration.
